Pro-C
Ultra-light full carbon spokes

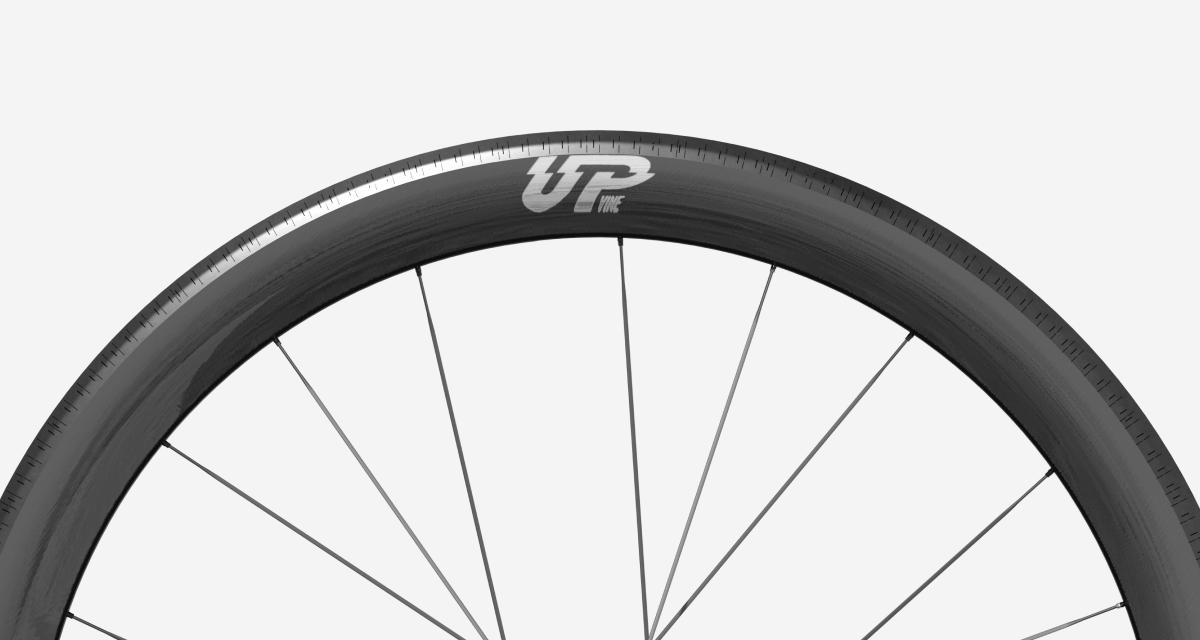

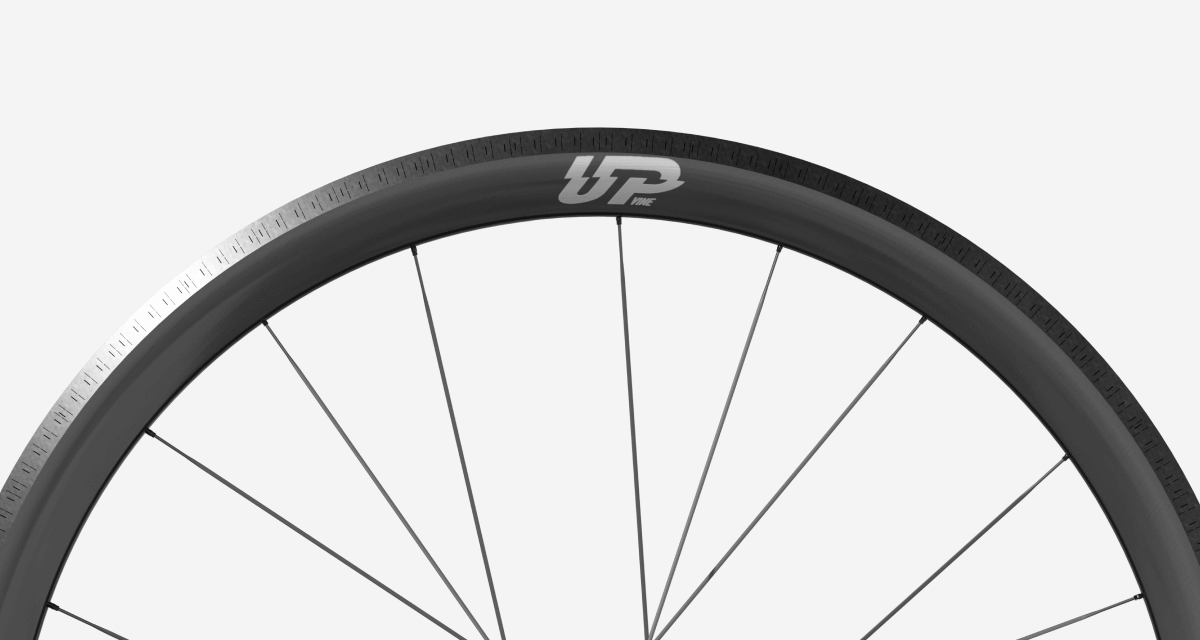

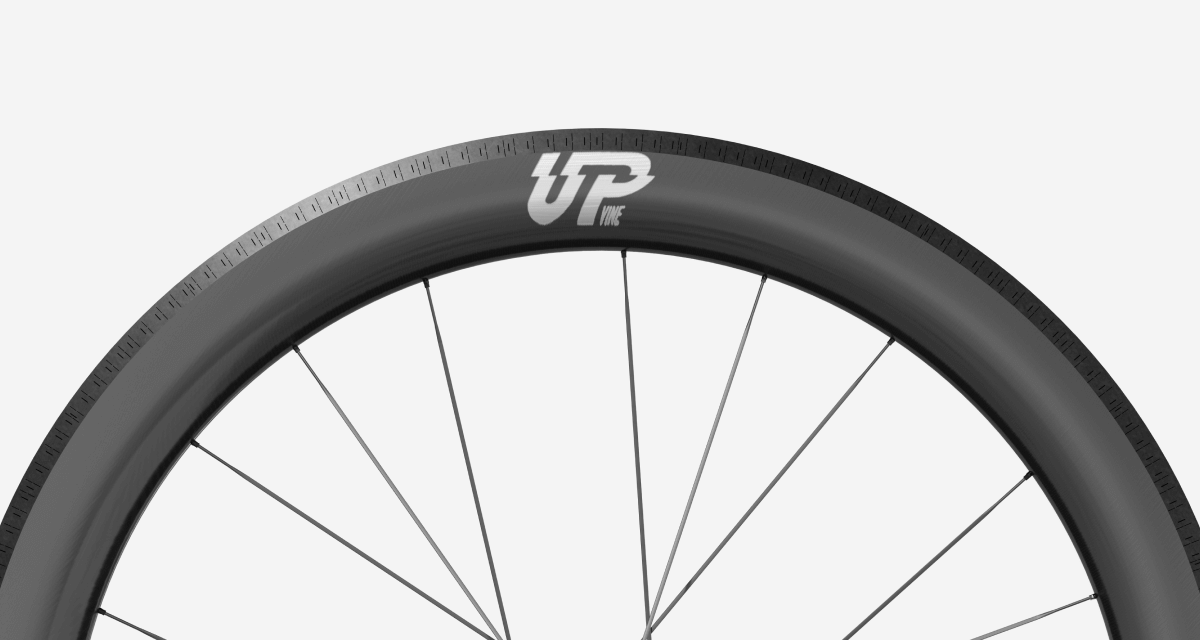

Drainage brake trackUndaunted by rain

PRO-C
  • Tubeless tire compatible
  • Clincher tire compatible

With the use of carbon fiber spokes, the rims are painted with a bright finish. The efficiency of the pedalling is improved, and the carbon fiber texture is displayed more clearly.

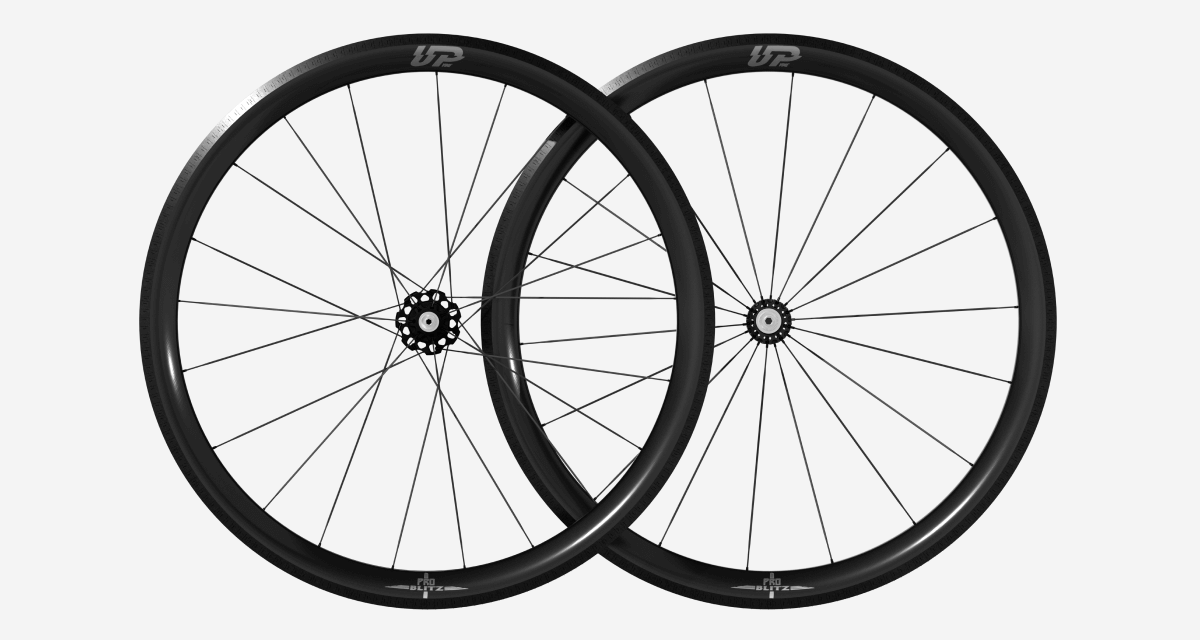

  • C40
    Rim Depth 40mm

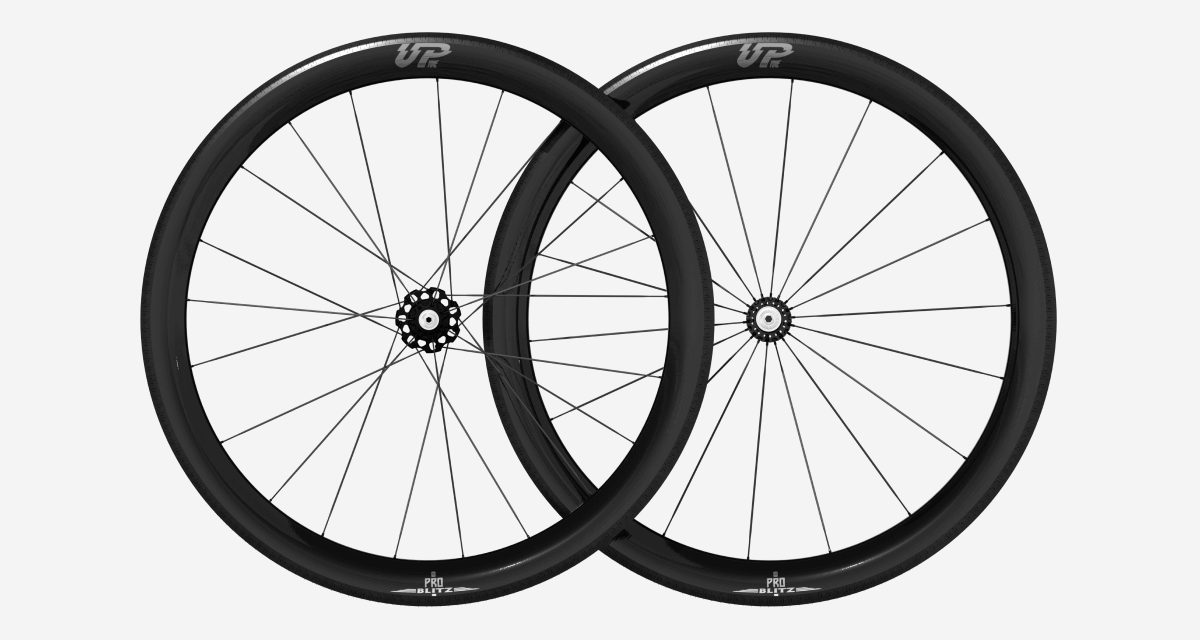

  • C50
    Rim Depth 50mm

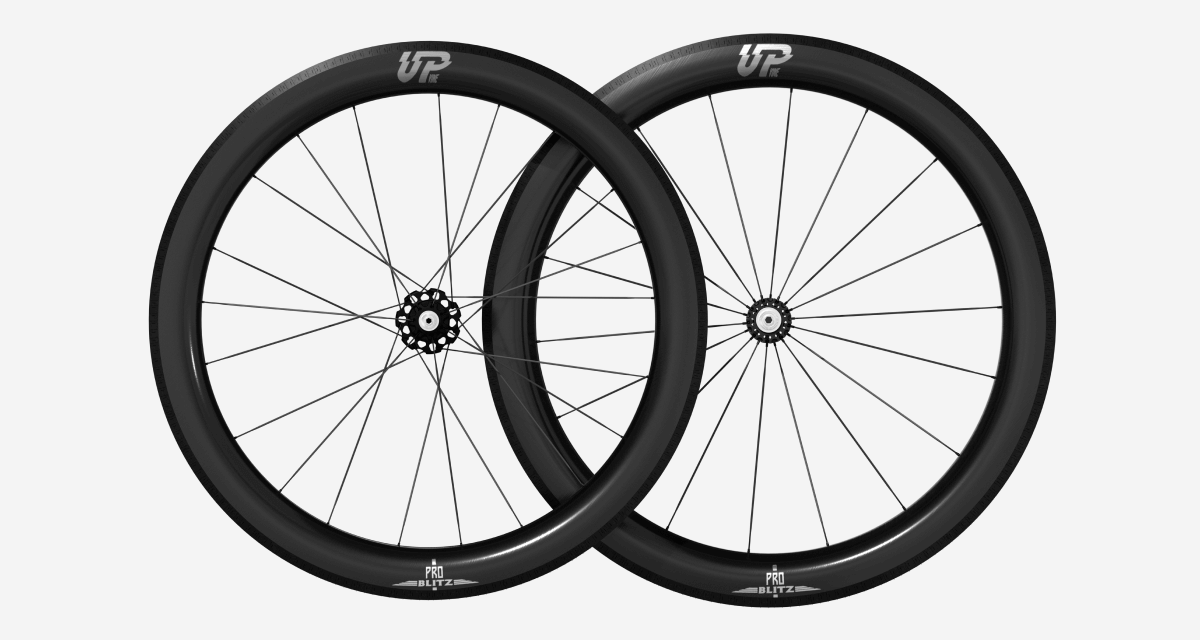

  • C60
    Rim Depth 60mm
Structure Front Wheel Rear Wheel
Weight 576g ± 5% 718g ± 5%
Spokes 18（ 0× ） 21（ Left 0×，Right 2× ）
Rim Depth 40mm 40mm
Internal Width 21mm 21mm
External Width 28mm 28mm
Rim Structure
Structure Front Wheel Rear Wheel
Weight 614g ± 5% 756g ± 5%
Spokes 18（ 0× ） 21（ Left 0×，Right 2× ）
Rim Depth 50mm 50mm
Internal Width 21mm 21mm
External Width 30.5mm 30.5mm
Rim Structure
Structure Front Wheel Rear Wheel
Weight 659g ± 5% 800g ± 5%
Spokes 18（ 0× ） 21（ Left 0×，Right 2× ）
Rim Depth 60mm 60mm
Internal Width 19mm 19mm
External Width 28mm 28mm
Rim Structure

Product Technologies

  • Wheelset Hubs

    The hub uses Up-Vine’s patented design: 18 spokes for the front rim brake wheel, 21 spokes for the rear (2:1); 21 spokes for the front disc brake wheel (2:1), and 24 spokes for the rear (2:1). The ratchet engagement angle is 6 degrees, enhancing pedalling response. The optimised flange geometry effectively balances the spoke tension on both sides of the wheelset, improving torsional and lateral rigidity.

  • Wheelset Spokes

    Bladed spokes and domestically produced carbon fiber spokes are used. While reducing weight, they also provide better aerodynamic efficiency, making riding faster and more stable. The steel spokes have a 2.2mm reinforcement treatment at the hub connection end, making the fit between the spokes and the hub tighter and more reliable.

  • Wheelset Rims

    Disc brake 40mm rims: external width 28mm, internal width 21mm.Disc brake 50mm rims: external width 30.5mm, internal width 21mm.Disc brake 60mm rims: external width 31mm, internal width 23mm.The steel spoke rims do not have spoke assembly holes and natively support tubeless systems without the need for rim tape. They use a hybrid arrangement of Toray T700 and T800 carbon, combined with epoxy resin optimised for disc brakes, reducing weight while ensuring rim rigidity and strength. The angles of the rim spoke holes are precisely matched with the angles of the hub flanges, minimising spoke stress and increasing the stability of the wheelset.

  • Wheelset Assembly

    All of Up-Vine's wheelsets are meticulously hand-assembled. The spoke tension ratio on both sides is 1:1, with the tension difference on one side kept within 15kgf. Each wheelset comes with a corresponding tension chart, accurately recording the data for each spoke. The factory standard for wheelset calibration precision is lateral deviation within 0.15mm and vertical runout within 0.15mm.
